Part Number |
Steel cable CW-W13.0 Synthetic rope CW-W13.0s |
|
Single line rated pull |
13,000lb(5,900kg) |
|
Motor |
12V 6.0hp/4.5kw Series Wound 24V available |
|
Control |
2 in 1 remote & an extra wireless remote |
|
Control box |
Aluminum |
|
Gear train |
3-stage planetary |
|
Gear ratio |
235:1 |
|
Clutch |
Rotating Ring gear |
|
Braking Action |
Automatic brake in the motor bracket. No heat on drum when winch works |
|
Drum Size |
63.5mmx224mm(2.5’’x8.8’’) |
|
Mounting bolt pattern |
254 x 114.3mm(10’’x4.5’’) |
|

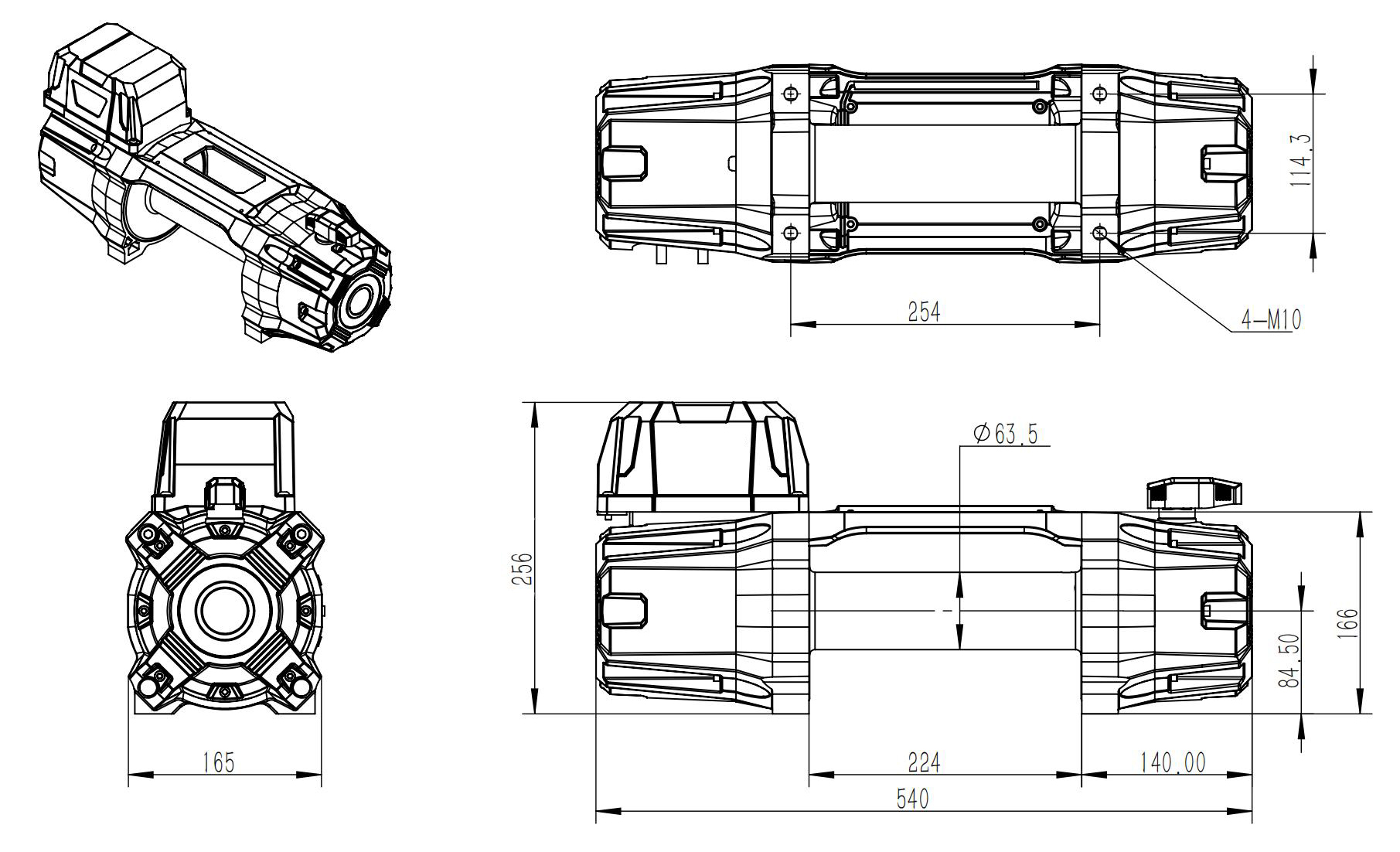

Overall Dimensions |
L540 x W164x H187mm (21.2’’x6.5’’x7.4’’) |
|
Steel cable &Synthetic Rope |
Steel cable 9.5mmx26m(3/8’’x85.3’) Synthetic rope 10mmx26m(25/64’’x85.3’) |
|
Roller fairlead & Hawse |
Steel cable with roller Synthetic rope with aluminum hawse |
|
Shipping Weight |
Steel cable 38kgs(83.7lbs) Synthetic rope: 29kg(64lbs) |
Pull,Speed,Amperes,Volts(First layer) Line Pull and Rope Capacity in Layer
| 12V DC PERFORMANCE SPECS | Rated line pull
lbs(kgs |
Rope on the drum
ft(m) |
||
| lbs(kgs) | Line Speed ft/min(m/min) | Motot Current (Amp) | ||
| 0 | 30.5(9.3) | 60 | 1/13000(5897) | 15.7(4.8) |
| 2000(907) | 13.4(4.1) | 120 | 2/10400(4717) | 39.4(12) |
| 5000(3629) | 10.2(3.1) | 170 | 3/8670(3932) | 64(19.5) |
| 8000(3629) | 7.9(2.4) | 240 | 4/7410(3362) | 26(85.3) |
| 11000(4990) | 5.9(1.8) | 325 | ||
| 13000(5897) | 4.6(1.4) | 410 | ||
