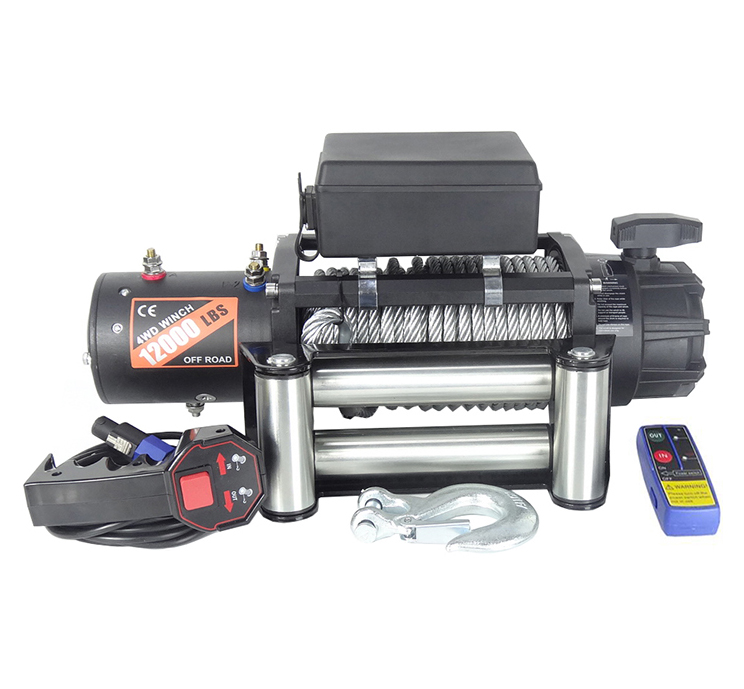

| Part Number | Steel cable CW-EX10.0
Synthetic rope CW-EX10.0s |
Steel cable CW-EX12.0 Synthetic rope CW-EX12.0s |
|
Single line rated pull |
10,000lb(4,536kg) |
12,000lb(5,443kg) |
|
Motor |
12V 6.0hp/4.5kw Series Wound 24V is available |
|
|
Control |
3.6m(11.8’) wired remote control |
|
|
Wireless remote control |
Included |
|
|
Gear train |
3-stage planetary |
|
|
Gear ratio |
179:1 |
216:1 |
|
Clutch |
Rotating Ring gear |
|
|
Braking Action |
Automatic brake in the motor bracket. No heat on drum when winch works |
|
|
Drum Size |
63.5mmx224mm(2.5’’x8.8’’) |
|
|
Mounting bolt pattern |
254 x 114.3mm(10’’x4.5’’) |
|
|

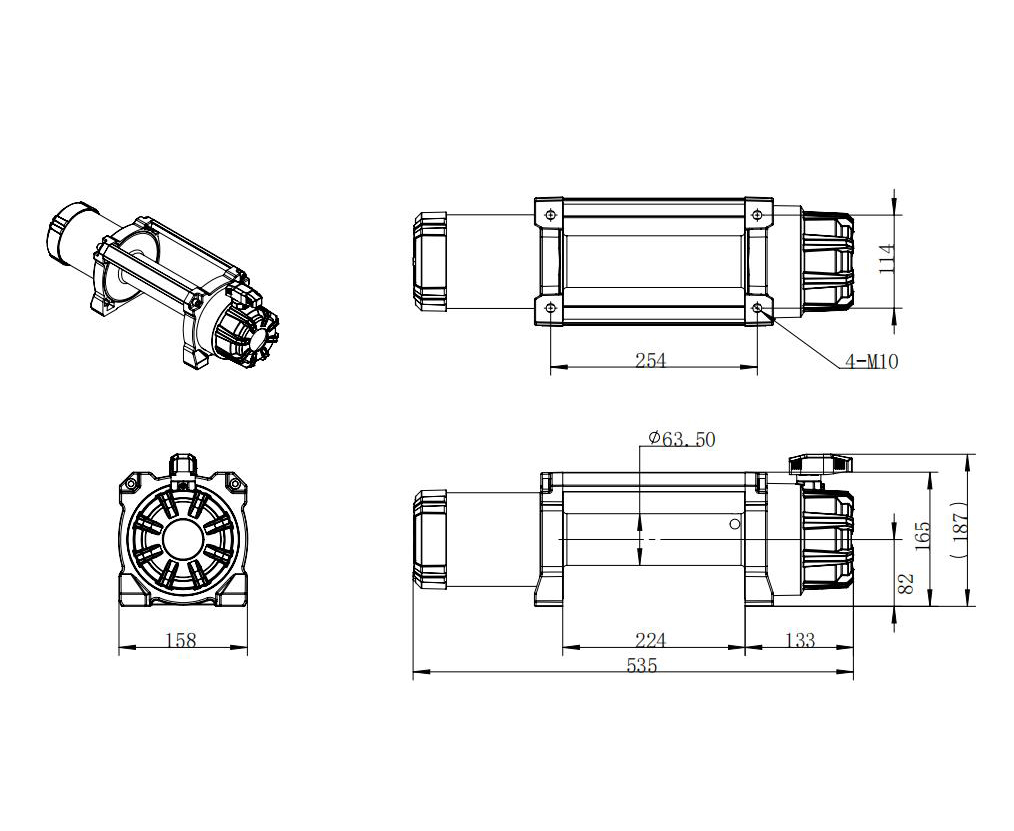

Overall Dimensions |
L535 x W158x H187mm (21.1’’x6.2’’x7.4’’) |
|
|
Steel cable &Synthetic Rope |
Steel cable 8.5mmx24m(11/32’’x78.7’)
Synthetic rope 9.0mmx24m(23/64’’x78.7’) |
Steel cable 9.5mmx24m(3/8’’x78.7’) Synthetic rope 10mmx24m(25/64’’x78.7’) |
|
Roller fairlead & Hawse |
Steel cable with roller Synthetic rope with aluminum hawse |
|
|
Shipping Weight |
Steel cable 33kgs(72.7lbs)
Synthetic rope: 26kg(57.3lbs) |
Steel cable 35kgs(77lbs) Synthetic rope: 27kg(59.5lbs) |
EX10.0 Pull,Speed,Amperes,Volts(First layer) Line Pull and Rope Capacity in Layer
| 12V DC PERFORMANCE SPECS | Rated line pull
lbs(kgs) |
Rope on the drum
ft(m) |
||
| Line Pull lbs(kgs) | Line Speed ft/min(m/min) | Motor Current | ||
| 0 | 31.8(12.8) | 60 | 1/10000(4536) | 15.7(4.8) |
| 2000(907) | 15.1(4.6) | 120 | 2/8200(3720) | 33.7(11.2) |
| 4000(1814) | 12.8(3.9) | 190 | 3/6840(3103) | 60.9(18.5) |
| 6000(2722) | 10.8(3.3) | 255 | 4/5820(2640) | 78.7(24.0) |
| 8000(3630) | 9.2(2.8) | 320 | ||
| 10000(4536) | 7.9(2.4) | 380 | ||
EX12.0 Pull,Speed,Amperes,Volts(First layer) Line Pull and Rope Capacity in Layer
| 12V DC PERFORMANCE SPECS | Rated line pull
lbs(kgs |
Rope on the drum
ft(m) |
||
| Line Pull lbs(kgs) | Line Speed ft/min(m/min) | Motor Current | ||
| 0 | 31.2(9.5) | 60 | 1/12000(5443) | 15.7(4.8) |
| 3000(1361) | 11.8(3.6) | 155 | 2/9570(4341) | 39.4(12) |
| 6000(2722) | 8.9(2.7) | 230 | 3/7960(3610) | 64(19.5) |
| 9000(4092) | 7.2(2.2) | 305 | 4/76820(3100) | 24(78.7) |
| 12000(5443) | 5.2(1.6) | 395 | ||
