Part Number |
Steel cable CW-7XD13.5 Synthetic rope CW-7XD13.5s |
|
Single line rated pull |
13,500lb(6,124kg) |
|
Motor |
12V 7.0hp/5.2kw Series Wound 24V available |
|
Control |
3.6m(11.8’) wired remote control |
|
Wireless remote control |
Included |
|
Gear train |
3-stage planetary |
|
Gear ratio |
218:1 |
|
Clutch |
Rotating Ring gear |
|
Braking Action |
Automatic brake in the motor bracket. No heat on drum when winch works |
|
Drum Size |
63.5mmx224mm(2.5’’x8.8’’) |
|
Mounting bolt pattern |
254 x 114.3mm(10’’x4.5’’) |
|

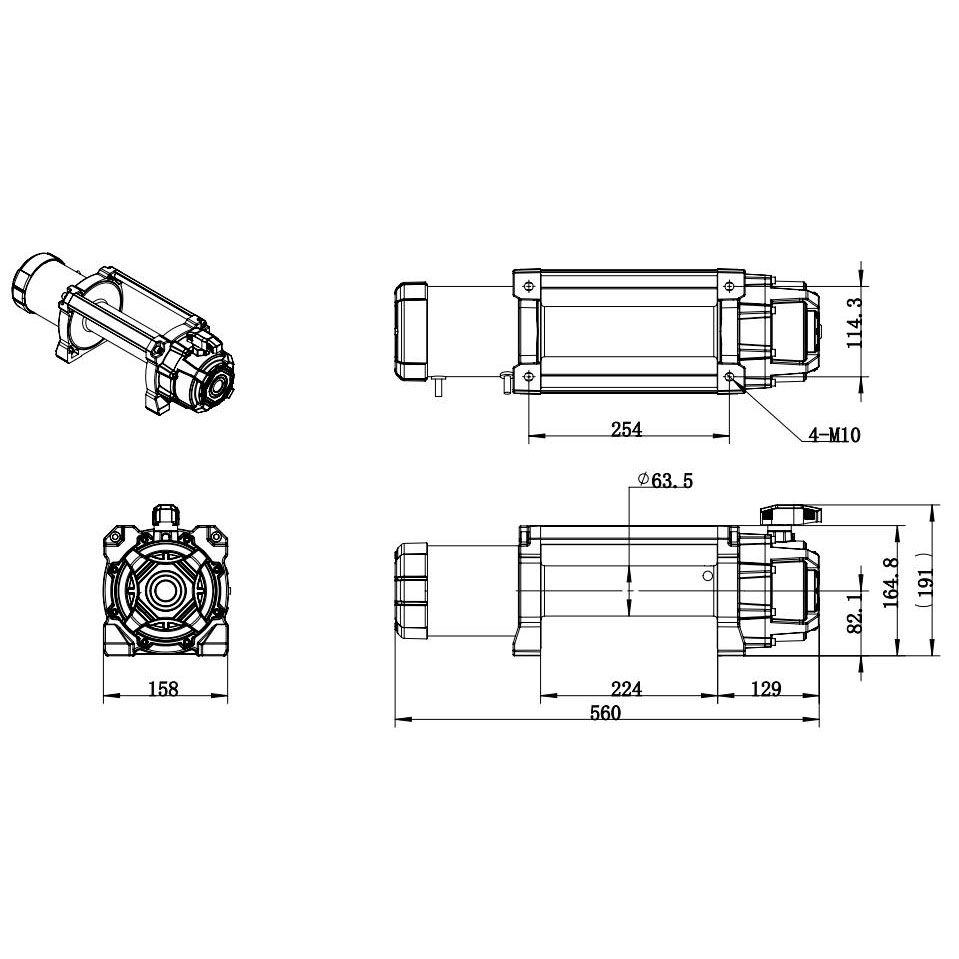

Overall Dimensions |
L560 x W158x H191mm (22.0’’x6.2’’x7.5’’) |
|
Only Synthetic Rope |
Synthetic rope 11mmx25m(27/64’’x82’) |
|
Hawse |
Aluminum hawse |
|
Shipping Weight |
29kg(63.9lbs) |
Pull,Speed,Amperes,Volts(First layer) Line Pull and Rope Capacity in Layer
| 12V DC PERFORMANCE SPECS | Rated line pull
lbs(kgs) |
Rope on the drum
ft(m) |
||
| Line Pull lbs(kgs) | Line Speed ft/min(m/min) | Motot Current (Amp) | ||
| 0 | 31.2(9.5) | 70 | 1/13500(6124) | 15.7(4.8) |
| 4000(1361) | 14.4(4.4) | 165 | 2/10980(4980) | 41(12.5) |
| 8000(2722) | 10.5(3.2) | 260 | 3/9150(4150) | 69.5(21.2) |
| 11000(4092) | 6.6(2.0) | 340 | 4/7820(3547) | 82(25) |
| 13500(5443) | 7.9(1.3) | 410 | ||
