CW-8HS11.0s & 8HS12.0s Specifications
|
Part Number |
Synthetic rope CW-8HS11.0 |
Synthetic rope CW-8HS12.0 |
|
Single line rated pull |
11,000lb(4,990kg) |
12,000lb(5,443kg) |
|
Motor |
12V 8.0hp/6.2kw Series Wound 24V is available |
|
|
Control |
3.6m(11.8’) wired remote control |
|
|
Wireless remote control |
Included |
|
|
Gear train |
3-stage planetary |
|
|
Gear ratio |
104:1 |
126:1 |
|
Clutch |
Rotating Ring gear |
|
|
Braking Action |
Automatic brake in the motor bracket. No heat on drum when winch works |
|
|

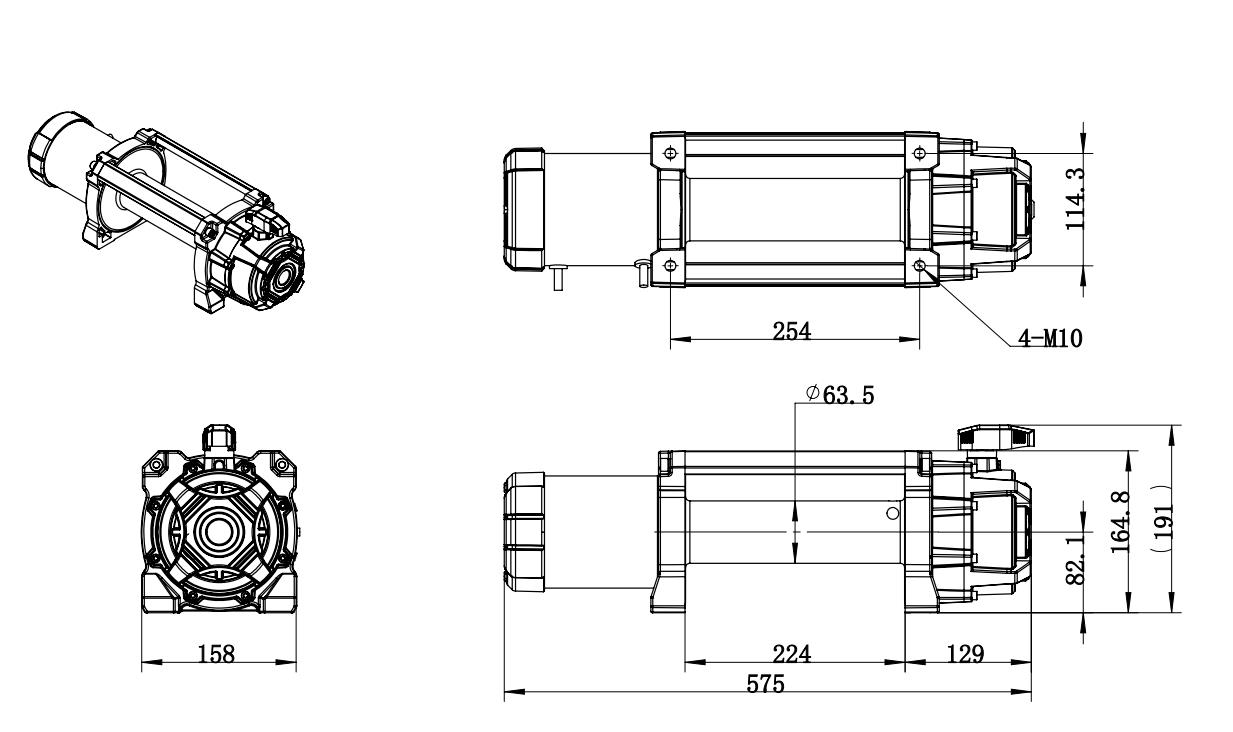

Drum Size |
63.5mmx224mm(2.5’’x8.8’’) |
|
|
Mounting bolt pattern |
254 x 114.3mm(10’’x4.5’’) |
|
|
Overall Dimensions |
L575 x W164x H187mm (22.6’’x6.5’’x7.4’’) |
|
|
Steel cable &Synthetic Rope |
Synthetic rope 9.5mmx26m(3/8’’x85.3’) |
Synthetic rope 10mmx26m(25/64’’x85.3’) |
|
Hawse |
Aluminum hawse |
|
|
Shipping Weight |
Synthetic rope: 29.5kg(65lbs) |
Synthetic rope: 30kg(66lbs) |
8HS11.0s Pull,Speed,Amperes,Volts(First layer) Line Pull and Rope Capacity in Layer
| 12V DC PERFORMANCE SPECS | Rated line pull
lbs(kgs) |
Rope on the drum
ft(m) |
||
| Line Pull lbs(kgs) | Line Speed ft/min(m/min) | Motor Current | ||
| 0 | 76(23.2) | 55 | 1/11000(4990) | 15.7(4.8) |
| 3000(1361) | 19.7(6.0) | 175 | 2/8945(4062) | 39.4(11.5) |
| 6000(2722) | 15.4(4.7) | 270 | 3/7580(3443) | 64(18.2) |
| 9000(4092) | 11.8(3.6) | 360 | 4/6530(2965) | 85.3(26) |
| 11000(4990) | 7.5(2.3) | 420 | ||
8HS12.0s Pull,Speed,Amperes,Volts(First layer) Line Pull and Rope Capacity in Layer
| 12V DC PERFORMANCE SPECS | Rated line pull
lbs(kgs) |
Rope on the drum
ft(m) |
||
| Line Pull lbs(kgs) | Line Speed ft/min(m/min) | Motor Current | ||
| 0 | 69.5(21.2) | 55 | 1/12000(5443) | 15.7(4.8) |
| 3000(1361) | 18.7(5.7) | 165 | 2/9570(4341) | 39.4(12) |
| 6000(2722) | 14.8(4.5) | 260 | 3/7960(3610) | 64(19.5) |
| 9000(4092) | 10.8(3.3) | 350 | 4/6820(3100) | 85.3(26) |
| 12000(5443) | 6.9(2.1) | 440 | ||
