SPECIFICATIONS
Part number: CW-XP5.0 or CW-XP5.0s(synthetic rope)
Rated line pull: 5000 lbs (2270kg) single-line
Motor: 12V DC 2.2HP Permanent magnet
Remote Control: Handlebar Mini-Rocker
Wireless Remote Control: Included
Geartrain: 3-stage Planetary.
Gear Ratio: 147:1
Brake: Roller-disc Full load Automatic
Drum Diameter/Length: 2.0’’/4.8’’ (52mm/122mm)
Rope: steel 6.3mmx13m(1/4”x43′)
synthetic rope 6.3mmx12m(1/4”x43′)
Fairlead: CW-XP5.0 Roller CW-XP5.0s Aluminum Hawse
Mounting Bolt Pattern: 76mmx164mm(3.0”x6.5”)

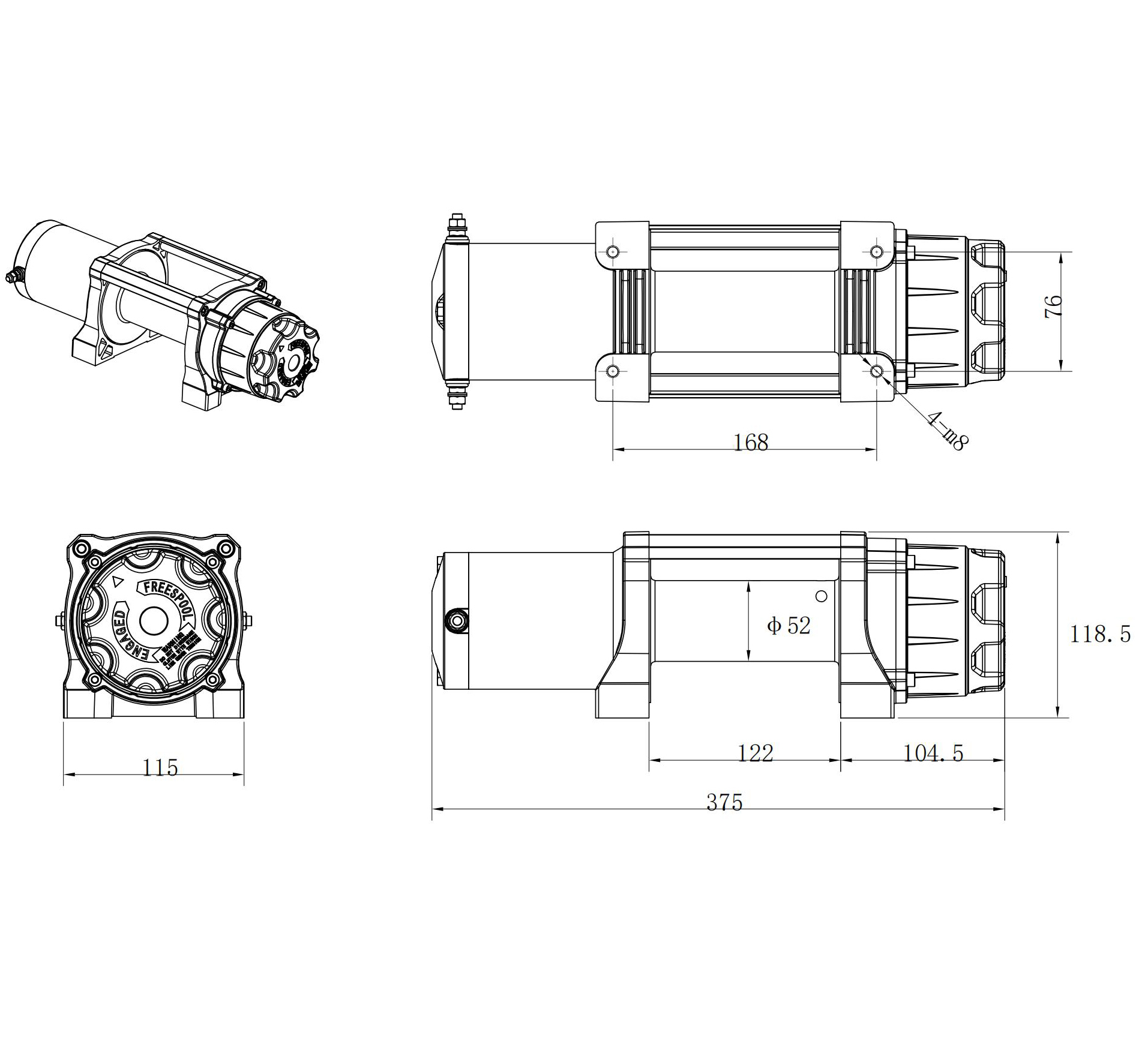

Winch Dimensions ( LxWxH ): 370mmx110mmx115mm(14.6”x4.3”x4.54”)
Packing Dimensions( LxWxH ): 505mmx300mmx180mm(19.9”x11.8”x7.1”)
Shipping Weight: CW-XP5.0 14kg(31lbs) CW-XP5.0s 12kg(26.5lbs)
| 12V DC performance specs (first layer of drum) | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 13.8(4.2) | 15 Amps | 1/5000 (2270) |
| 1000 (454) | 10.9 (3.3) | 75 amps | 2/4280(1940) |
| 2000 (907) | 9.3(2.8) | 120 Amps | 3/3750 (1700) |
| 3000 (1360) | 8.1(2.5) | 160 amps | 4/3340 (1515) |
| 4000 (1814) | 6.8(2.1) | 190 amps | |
| 5000 (2270) | 5.4(1.6) | 230 Amps | |
