SPECIFICATION / PART NUMBERS CW-XP4.5
Part number: CW-XP4.5 or CW-XP4.5s(synthetic rope)
Rated line pull: 4500 lbs (2040kg) single-line
Motor: 12V DC 2.2HP Permanent magnet
Remote Control: Handlebar Mini-Rocker
Wireless Remote Control: Included
Geartrain: 3-stage Planetary.
Gear Ratio: 147:1
Brake: Roller-disc Full load Automatic
Drum Diameter/Length: 2.0’’/3.1’’ (52mm/78mm)
Rope: steel 6.3mmx12m(1/4”x39.4′)
synthetic rope 6.3mmx12m(1/4”x39.4′)
Fairlead: CW-XP4.5 Roller CW-XP4.5s Aluminum Hawse

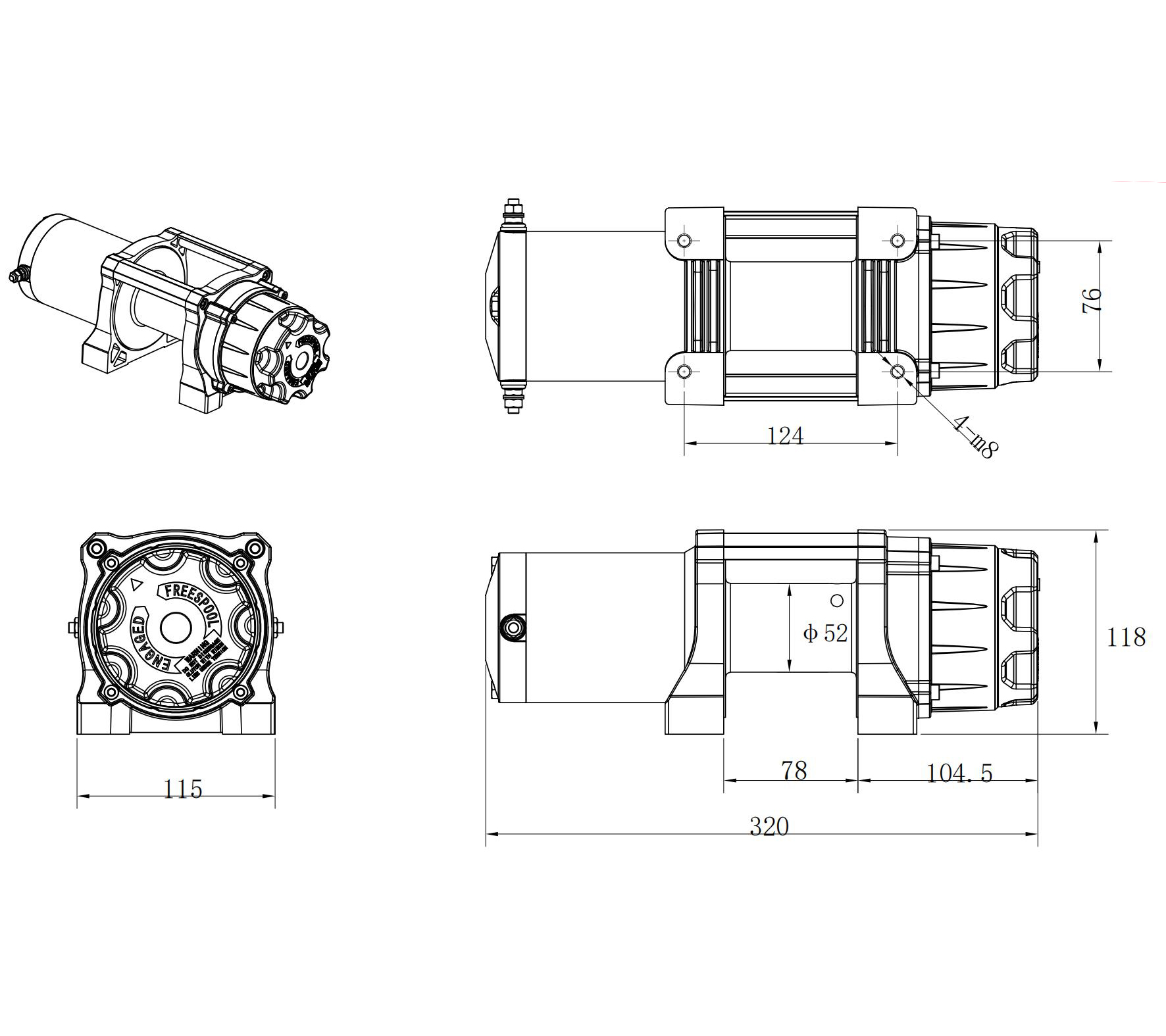

Mounting Bolt Pattern: 76mmx124mm(3.0”x4.9”)
Winch Dimensions ( L x W x H ): 320mmx110mmx115mm(12.2”x4.3”x4.54”)
Packing Dimensions( L x W x H ): 340mmx130mmx240mm(18.5”x11.4”x8.1”)
Shipping Weight: CW-XP4.5 13kg(29lbs) CW-XP4.5s 11kg(24lbs)
| 12V DC performance specs (first layer of drum) | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 16.1(4.9) | 15amps | 1/4500 (2040) |
| 1500 (680) | 10.5 (3.2) | 75 amps | 2/2935(1700) |
| 3000 (1360) | 6.5(2.0) | 125 amps | 3/2525 (1455) |
| 4500 (2040) | 4.3(1.3) | 180 amps | 4/2215 (1275) |
