With a massive 20,000lbs of pulling capacity. Engineered for a wide variety of job demands. the CW-HW20.0 is highly dependable and easy to use in situations that require increased pulling power for higher GVW vehicles,trailer, and roll-off container applications. It comes with 25m(82’) of 13mm(33/64’’) stronger synthetic rope with the broken strength 14,500kg(31,930lbs). The brake of this winch is installed in motor frame. No any heat on the drum when winch works. It is great for the biggest, heaviest vehicles on or off the pavement
Please Note: This winch requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
|
Part Number |
CW-HW20.0s |
|
Single line rated pull |
20,000lb(9,072kg) |
|
Motor |
12V 7.0hp/5.2kw Series Wound 24V available |
|
Control |
3.6m(11.8’) wired remote control |
|
Wireless remote control |
Included |
|
Gear train |
3-stage planetary |
|
Gear ratio |
345:1 |
|
Clutch |
Rotating Ring gear |
|
Braking Action |
Automatic brake in the motor bracket. No heat on drum when winch works |
|
Drum Size |
Φ88mmx224mm(φ3.46’’x8.8’’) |
|

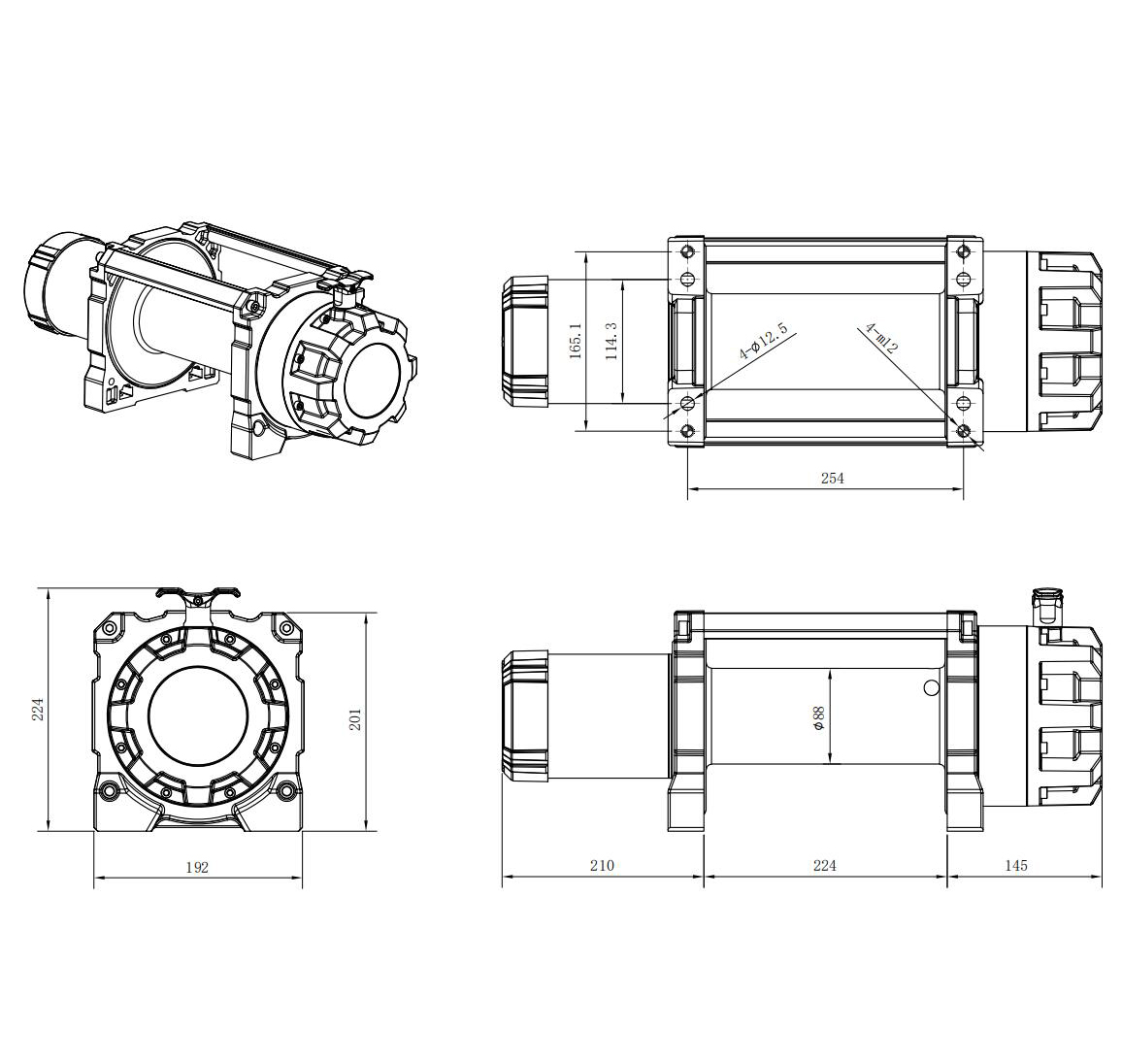

Mounting bolt pattern |
254 x 114.3mm(10’’x4.5’’) 254×165.1mm(10’’x6.5’’) |
|
Overall Dimensions |
577mmx192mmx224mm(22.7’’x7.6’’x8.8’’) |
|
Synthetic Rope |
Synthetic rope φ13mmx25m(φ15/32’’x82’) |
|
Hawse |
Aluminum hawse |
|
Shipping Weight |
44kg(97lbs) |
Pull,Speed,Amperes,Volts(First layer) Line Pull and Rope Capacity in Layer
| 12V DC PERFORMANCE SPECS | Rated line pull
lbs(kgs) |
Rope on the drum
ft(m) |
||
| Line Pull lbs(kgs) | Line Speed ft/min(m/min) | Motor Current | ||
| 0 | 26.2(8.0) | 70 | 1/20000(9072) | 18.4(5.6) |
| 4000(1814) | 10.8(3.3) | 145 | 2/16140(7321) | 38.8(11.8) |
| 8000(3629) | 8.5(2.6) | 230 | 3/13520(6133) | 64.7(19.7) |
| 12000(5443) | 6.2(1.9) | 310 | 4/11660(5289) | 82(25.0) |
| 16000(7257) | 4.6(1.4) | 390 | ||
| 20000(9072) | 3.3(1.0) | 460 | ||
